Fairchild

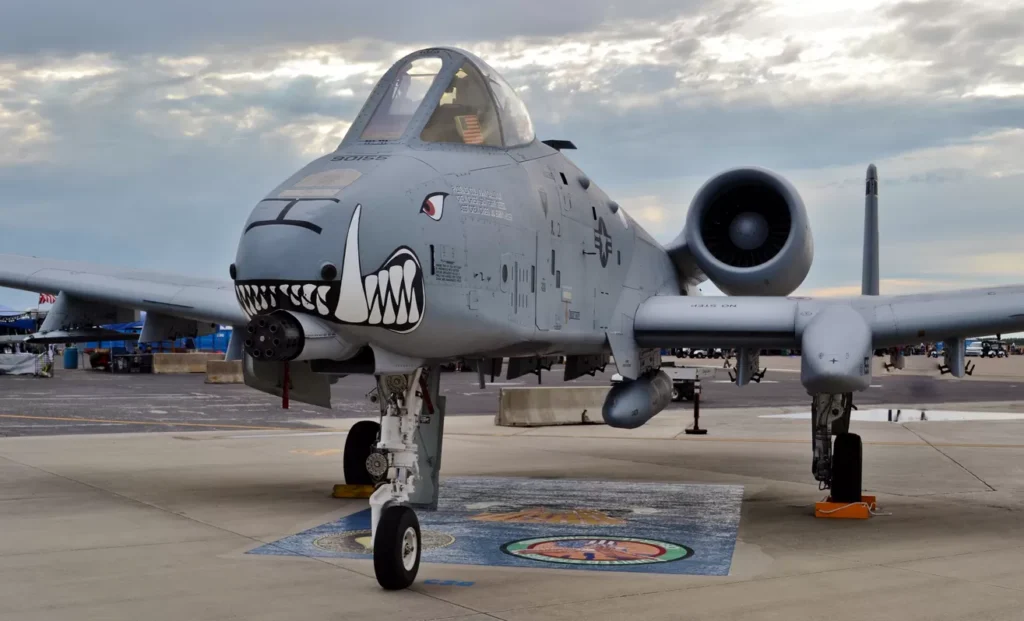

Fairchild A-10 Thunderbolt II

Attack aircraft

Fairchild A-10 Thunderbolt II
  • First flight1972
  • IntroductionOctober 1977
  • StatusOperational
  • Number built716

History

Background

By the time of the Vietnam War, the 1940s-vintage propeller-driven Skyraider was the USAF’s only dedicated close air support aircraft. It was slow, vulnerable to ground fire, and relatively lightly armed.

The development of conventionally armed attack aircraft in the United States stagnated after World War II,[6] as design efforts for tactical aircraft focused on the delivery of nuclear weapons using high-speed designs such as the McDonnell F-101 Voodoo and Republic F-105 Thunderchief.[7] As the U.S. military entered the Vietnam War, its main ground-attack aircraft was the Korean War-era Douglas A-1 Skyraider. A capable aircraft for its era, with a relatively large payload and long loiter time, the propeller-driven design had become relatively slow, vulnerable, particularly to ground fire, and incapable of providing adequate firepower. The U.S. Air Force and Navy lost some 266 A-1s in action in Vietnam, largely from small-arms fire.[8][9]

The lack of modern conventional attack capability prompted calls for a specialized attack aircraft.[10][11] On 7 June 1961, the Secretary of Defense Robert McNamara ordered the USAF to develop two tactical aircraft, one for the long-range strike and interdictor role, and the other focusing on the fighter-bomber mission. The former was the Tactical Fighter Experimental (TFX) intended to be a common design for the USAF and the US Navy,[12] which emerged as the General Dynamics F-111 Aardvark, while the second was filled by a version of the U.S. Navy‘s McDonnell Douglas F-4 Phantom II. While the Phantom went on to be one of the most successful fighter designs of the 1960s and proved to be a capable fighter-bomber, its short loiter time was a major problem, as was its poor low-speed performance, albeit to a lesser extent. It was also expensive to buy and operate, with a flyaway cost of $2 million in FY1965 ($20.4 million today), and operational costs over $900 per hour ($9,000 per hour today).[13]

After a broad review of its tactical force structure, the USAF decided to adopt a low-cost aircraft to supplement the F-4 and F-111. It first focused on the Northrop F-5, which had air-to-air capability.[9] A 1965 cost-effectiveness study shifted the focus from the F-5 to the less expensive A-7D variant of the LTV A-7 Corsair II, and a contract was awarded. However, this aircraft doubled in cost with demands for an upgraded engine and new avionics

Technical data

Specifications

01

Crew & dimensions

Crew
1
Length
16.26 m (53 ft 4 in)
Wingspan
17.53 m (57 ft 6 in)
Height
4.47 m (14 ft 8 in)
02

Performance

Maximum speed
706 km/h (439 mph, 381 kn)
Range
463 km (combat range)
Service ceiling
13,700 m (45,000 ft)
03

Powerplant

Powerplant
2 × General Electric TF34-GE-100A turbofans (9,065 lbf / 40.32 kN)
04

Armament

Armament
Guns: 1× 30 mm (1.18 in) GAU-8/A Avenger rotary cannon with 1,174 rounds; Hardpoints: 11 (8× under-wing and 3× under-fuselage pylon stations)
Technical drawing

Silhouette

Side viewATN-00620
Silhouette of the Fairchild A-10 Thunderbolt II — side view
Aircraft
Fairchild A-10 Thunderbolt II
First flight
1972
Role
Attack aircraft
Length
16.26 m
Wingspan
17.53 m
Height
4.47 m
Drawing
Aircrafttotal · Side view
